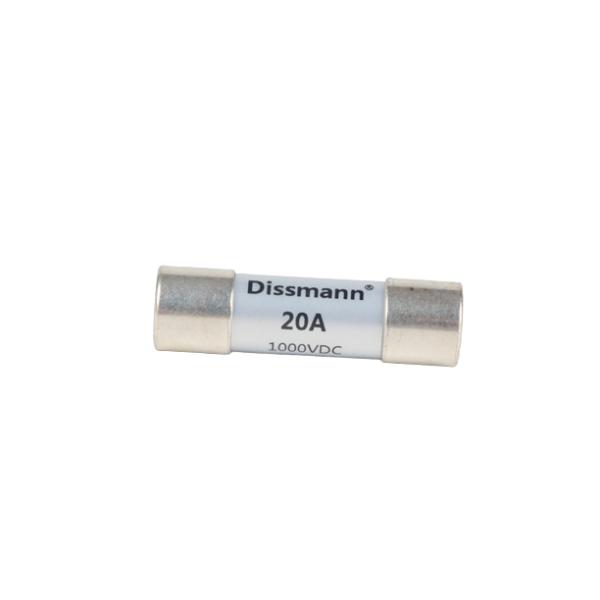

Dissmann® 10 X 38 1000VDC PV Solar Fuse for Power Bank & Energy Storage System
HD10PV series of products have the characteristics of low fault current (IN: 2IN) interrupting capacity, temperature shock resistance, current shock, mechanical vibration and shock. It is applicable to short circuit, overload and backup protection of photovoltaic system, combiner box, electric vehicle driving power system, energy storage and power battery, energy storage capacitor, power conversion system, frequency conversion controller, charger, wire and other vehicle devices and equipment.
Specifications of the 10 x 38 1000VDC Energy Storage System Fuse:
1.Presentation of 10 x 38 Energy Storage System Fuse:
| Rated Voltag | 1000VDC | Characteristic | gG |
Rated Current | 1A-20A | Breaking Capacity | 33KA |
Meet the Requirement | UL248, IEC60127,RoHS | Remarks | UL,TUV |
2.Dimensions of the 10 x 38 Energy Storage System Fuse(mm):
3.Characteristic of the 10 x 38 Energy Storage System Fuse Socket:
| Product model | HDPV |
| Size | 10x38 |
| Rated current | 20A |
| Rated voltage | 1000VDC |
| Breaking current | 33KA |
| Terminal fastening moment | 1.7N·m (14.75IN·LBS) |
| Copper junction conductor cross-sectional area | 2～10mm2 (14～6AWG) |
| Assembly | Material quality |
| Monoblock | Ceramic |
| Terminal | Copper alloy plating high temperature tin |
4.Single Product Model of the 10 x 38 Energy Storage System Fuse:
| Model | Rated current A | Rated voltage V | Breaking capacity |
| HD10PV | 1A～40A | 1000Vac | 1.5KA |
| 1A～20A | 1000Vdc | 33KA |
| 1A～40A | 1000Vdc | 1.5KA |
| HD10P | 1A～20A | 750Vac/dc | 33KA |
| HD10P | 1A～40A | 750Vdc | 1.5KA |
| HD10V | 1A～50A | 700Vdc | 6KA |
| HD10DX | 1A～20A | 500Vac/dc | 33KA |
| HD10X | 1A～20A | 500Vac | 33KA |
| 30A～100A | 500Vac | 1.5KA |
| HD10D | 1A～20A | 500Vdc | 33KA |
| HD10D | 1A～50A | 500Vdc | 6KA |
| HD10MN | 1A～20A | 690Vac/dc | 33KA |
| HD10N | 1A～20A | 690Vac |
| HD10M | 1A～20A | 690Vdc |
| HD10G | 1A～20A | 600Vdc | 6KA |
| HD10H | 1A～20A | 600Vac |
| HD10C | 30A～100A | 400Vdc | 1.5KA |
| HD10F | 1A～20A | 400Vac | 6KA |
| HD10A | 1A～20A | 250Vac |
| HD10L | 60A | 80VDC |
How to choose a right model of the energy storage fuse:
You can choose the right square ceramic pv solar fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
Advantage of our factory as the energy storage fuse Supplier:
1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
2.Our fuse products certified UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
Welcome you to get more information of the energy storage system fuse,We will provide you with fast and efficient services and high-quality fuse products.
